MSI B150M-Mortar ( DDR4 - Skylake 1151 )

MSI B150M-Mortar ( DDR4 - Skylake 1151 )

Mã SP:

Lưu sản phẩm yêu thích

Tình trạng: Hàng mới
Bảo hành:
Giao hàng:
- Giao hàng toàn quốc
- Thanh toán khi nhận hàng hoặc chuyển khoản ( chi tiết xem tại đây )
Giá bán:
Liên hệ

Mô tả chi tiết

_________________________

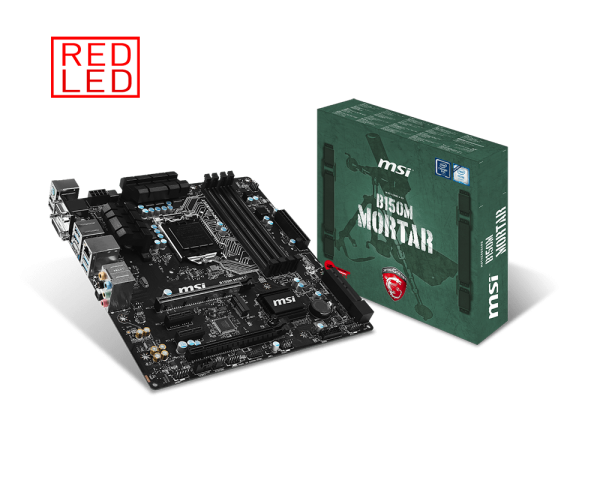

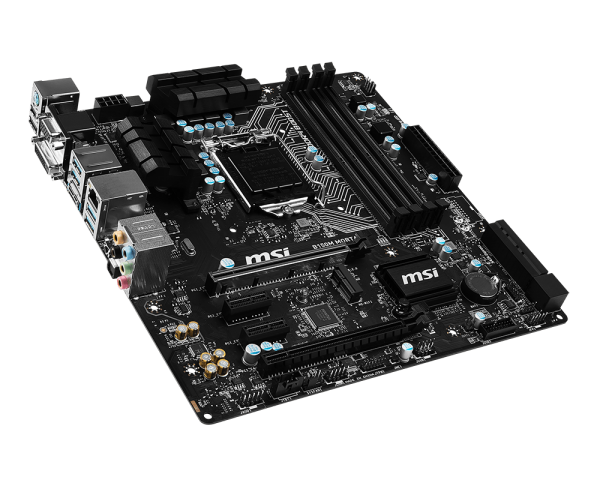

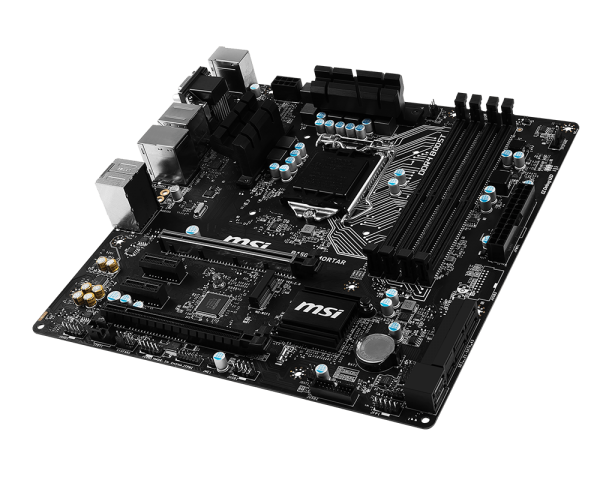

MSI B150M-Mortar ( SK 1151 - Skylake ) *



- Cổng : Vga - DVI - HDMI -  USB 3.0 - Sata 3 x 8 ...

- Hỗ trợ gắn SSD M2 : 01 cổng.

- Có cổng gắn USB 3.0 phía trước.

- Khe gắn Vga rời PCI Express : 1 x 16X -  2 x 1X.

- Ram : 4 khe ram, hỗ trợ DDR4 tối đa 64G bus 2133  ( vẫn chạy với Ram bus cao hơn nhưng nhận với bus 2133 ).

- Chip có thể gắn : Pentium G4x - Core I3 6x - Core I5 6x - Core I7 6x.

- Lan : 1000Mb.

- Âm thanh : HD Audio với mạch lọc chống nhiễu.



* Tham khảo thêm thông số tại trang chủ :

https://vn.msi.com/Motherboard/B150M-MORTAR.html#hero-overview​



* Khuyến mãi : tặng kèm chuột MSI DS B1 Gaming khi mua kèm Mainboard *



__________________________





  • Hỗ trợ vi xử lý 6th Gen Intel® Core™ / Pentium® / Celeron® với socket LGA 1151
  • Hỗ trợ Ram DDR4-2133
  • Intel® SBA Support: Cải thiện hiệu năng, tăng khả năng bảo mật.
  • DDR4 Boost: Tăng cao hiệu năng cho Ram DDR4
  • GAMING LAN: Giảm độ trễ khi chơi game trực tuyến
  • GAMING DNA: Hỗ trợ thêm đèn LED ở viền để tăng thêm vẻ hấp dẫn khi chơi game.
  • Audio Boost: Giúp bạn nghe được những âm thanh với chất lượng cao.
  • Military Class 4: Chất lượng & Ổn định.
  • Guard-Pro: Nâng cao khả năng bảo vệ và tiết kiệm năng lượng.
  • MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Hổ trợ AMD Crossfire™
  • SATA Express 16Gb/s + SATA 6Gb/s
  • Click BIOS5: Giải pháp UEFI BIOS an toàn và đáng tin cậy hơn.
  • EZ Debug LED: Khắc phục sự cố một cách đơn giản
  • Overvoltage Protection:Ngăn chặn tính trạng sốc điện quá tải.
  • 4K UHD Support: Cho mức hình ảnh hiển thị cao đáng kinh ngạc.
  • GAMING CERTIFIED: 24h thử nghiệm online và offline games bởi người chơi eSports mang lại kinh nghiệm chơi games tốt nhất.
  • WHQL CERTIFIED. Bắt đầu WINDOWS 10 READY.

























Tư vấn & bán hàng qua Facebook

Thông số


CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.




Chipset

• Intel® B150 Chipset




Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)




Slots

• 2 x PCIe 3.0 x16 slots (support x16/x4)*
• 2 x PCIe 3.0 x1 slots
• 1 x M.2 Wi-Fi module slot
* The PCI_E4 slot will only run PCIe 3.0 x2 speed when the PCI_E3 slot is installed a device.



Onboard Graphics

• 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz



Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology




On-Board SATA

• Intel® B150 Chipset
• 6 x SATA 6Gb/s ports
• 1 x SATAe port*

* SATAe port is backward compatible with SATA.




USB

• Intel® B150 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel,2 ports available through the internal USB connectors)
- 4 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connectors)




Audio

• Realtek® ALC892 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output




LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

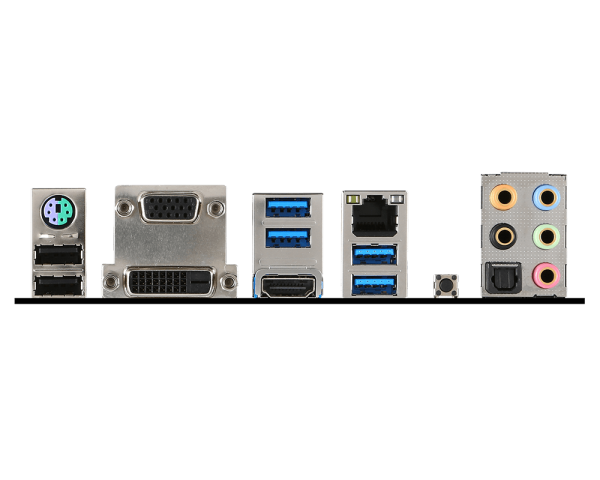

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 ports
- 4 x USB 3.1 Gen1 ports
- 1 x VGA port
- 1 x HDMI™ port
- 1 x DVI-D port
- 1 x LAN (RJ45) port
- 1 x Clear CMOS button
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks




Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connectors (support additional 2 USB3.1 Gen1 ports)
- 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector




Dimension

• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) M-ATX Form Factor




Mounting

• 8 mounting holes
