MSI H110M Pro-VD ( SK 1151 - Skylake )

MSI H110M Pro-VD ( SK 1151 - Skylake )

Mã SP:

Lưu sản phẩm yêu thích

Tình trạng: Hàng mới
Bảo hành:
Giao hàng:
- Giao hàng toàn quốc
- Thanh toán khi nhận hàng hoặc chuyển khoản ( chi tiết xem tại đây )
Giá bán:
Liên hệ

Mô tả chi tiết

_________________________



* MSI H110M Pro-VD ( SK 1151 - Skylake ) *



- Cổng : Vga - DVI - USB 3.0 - Sata 3 x 4 ...

- Có cổng gắn USB 3.0 phía trước.

- Khe gắn Vga rời PCI Express : 1 x 16X -  2 x 1X.

- Ram : hỗ trợ DDR4  tối đa 32G bus 2133 ( vẫn chạy với 2400 nhưng nhận thành 2133 ).

- Chip có thể gắn : Pentium G4x - Core I3 6x - Core I5 6x - Core I7 6x.

- Lan : 1000Mb.

- Âm thanh : HD Audio với mạch lọc chống nhiễu.

__________________________













Tư vấn & bán hàng qua Facebook

Thông số


CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.



Chipset

• Intel® H110 Chipset



Main Memory

• 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports Non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)


Slots

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots


Onboard Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz



On-Board SATA

• Intel® H110 Chipset
• 4 x SATA 6Gb/s ports



USB

• Intel® H110 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)


Audio

• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio



LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

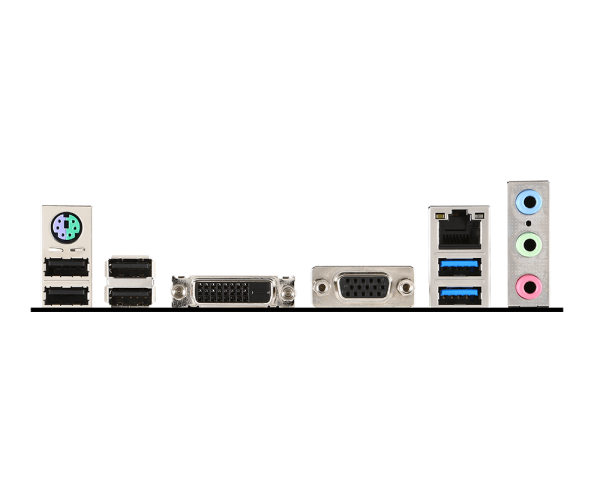

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.1 Gen1 ports
- 1 x DVI-D port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Serial Port connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper



Dimension

• 9.3 in. x 7.1 in. (23.5 cm x 18.0 cm) Micro-ATX Form Factor


Mounting

• 6 mounting holes
